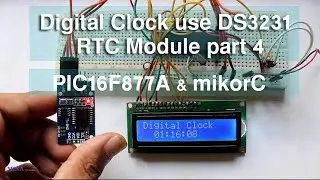

DS3231 RTC module interfacing with PIC Microcontroller with code part 4
In this tutorial we will learn how to interfacing DS3231 RTC Module with PIC Microcontroller. DS3231 RTC module is Real Time Clock module. Here I am use PIC16F877A Microcontroller and LM16x2 Lcd display.
The DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input, and maintains accurate timekeeping when main power of the device is interrupted.
The RTC module maintains second, minute, hour, day, date and year information. The date at end of the month is automatically adjusted for month with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour and 12-hour format with an AM/PM indicator.
For more details and source code: https://www.microcontrollerprogrammin...
Thanks for visit our channel. This channel is education purpose.
